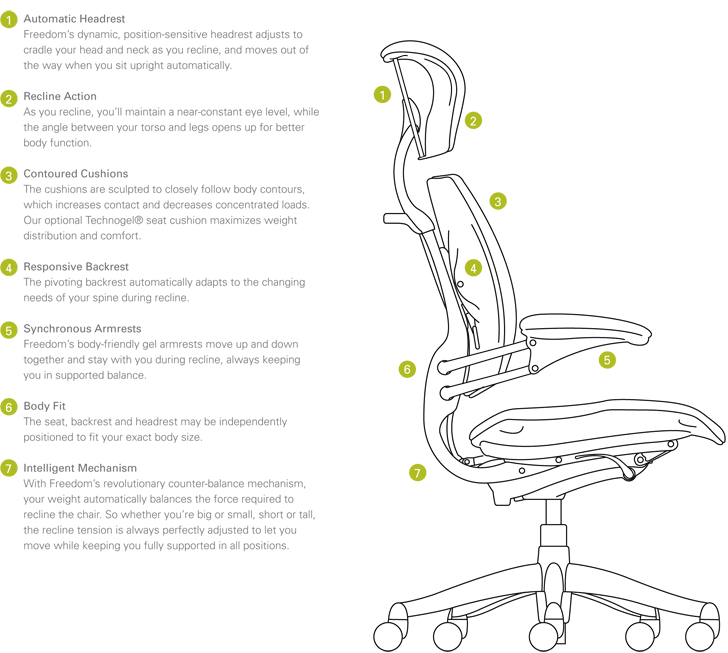

Standard Features

Self-Adjusting Recline

• Intelligent counter-balance recline mechanism automatically provides the right amount of support through the full range of recline motion, regardless of user size and weight
• No tension springs to adjust
• No recline locks to set/release
• During recline, the angle between torso and legs opens up for better body function
• User maintains near-constant eye level during recline

Pivoting Backrest

• Extra motion of the backrest during recline automatically adjusts to the changing needs
  of the spine
• Provides up to 1” additional lumbar support when needed

Synchronous Armrests

• Revolutionary armrests move in tandem to eliminate uneven arm positioning
• Natural lift and release action for immediate repositioning without buttons or locks
• 6” range of vertical motion to accommodate all users and tasks
• Can be positioned below thigh level for close table or desk work
• Attached to backrest so arms stay in same relation to body during recline
• Duron arm pad for durability and comfort

Standard Cylinder

• Provides seat height range that accommodates 95% of the population

Contoured Cushions

• Carefully sculpted to match body contours
• Increased contact area reduces pressure points
• Modular for easy replacement

Body Fit

• Size adjustable to fit more than 95% of the population
• Adjustments for fit-to-size:
  • Headrest: 5” vertical adjustment range
  • Seat Height: 5” adjustment range
  • Seat Depth: 2.25” adjustment range
  • Backrest/Lumbar Support Height: 3” adjustment range

Hard Casters

• 2.5” double-wheel casters for carpeted floors

Optional Features

Dynamic Headrest

• Position-sensitive headrest moves into place when you recline and out of the way when you sit upright
• 5” vertical adjustment to fit all users
• Moves in the natural arc of head/neck for perfect support through range of recline
• Contoured to cradle the head and neck in comfort

Gel Seat Cushion

• Non-degradable, non-compressible Technogel® layer on top of foam core
• Provides maximum pressure distribution
• Offers unmatched, long-term comfort

Arm Pad Option

• Flexible Duron
• Technogel® for optimal comfort

Advanced Armrests

• Pivot at elbow for width adjustment
• Lockable in 5° increments
• Automatic unlock feature when positioned inward and user wishes to exit chair
• 1.25” longer than Standard Armrests for additional forearm support

Cylinder Options

• Low cylinder for small users
• Tall cylinder for very tall users
• High cylinder with foot ring
• Extra-high cylinder with foot ring (Saddle seat only)

Foot Ring

• Chrome finish
• Height-adjustable

Caster Options

• 2.5” soft double-wheel casters for hard floors
• Non-rolling glides for fixed-location use
• 2.5” locking casters

Fireproofing

• CAL 133-approved
  • Fireproof barrier between textile and foam
• Fire-retardant plastics



  Specifications



  CODE	DESCRIPTION	MEASUREMENT
  a	Seat Depth (from face of lumbar to front of seat)	16.25"– 18.5"
  b	Seat Height  (floor to compressed front center of seat cushion)	16"– 21" standard 15.25"– 19" low cylinder 17"– 22.25" tall cylinder 20.5"– 28.5" high cylinder chair
  c	Seat Width	21"
  d	Backrest Height Adjustment Range	18" 3" in 0.25" increments
  e	Chair Width	27.25"
  f	Armrest Height Adjustment Range	5" - 11" 6" in 0.33" increments
  g	Armrest Length	13" standard 14.25" advanced
  h	Distance between Armrests  (front inside edge)	20" standard 11.5" - 21.5" advanced
  i	Height (no headrest)	33.5" - 41.5" standard 32.75" - 39.5" low cylinder 34.5" - 42.75" tall cylinder 38" - 49" high cylinder
  j	Height (with headrest)	43" - 53" standard 42.25" - 51" low cylinder 44" - 54.25" tall cylinder 47.5" - 60.5" high cylinder
  k	Headrest Height Adjustment Range	5"
  l	Base Diameter	25"
  m	Foot Ring Diameter	18" or 21"
  n	Foot Ring Height Adjustment (from floor)	6" - 11"
  o	Backrest Width	21"

  Scope of Users

  • Standard chair fits more than 95% of the office population
  • 5’0” Woman to 6'4' Man
  • 100 to 300 pounds

  Users outside the standard range can be accommodated by:

  • Low or Tall Cylinder
  • Advanced Armrests

  Weight

  39 pounds.

  Backrest Recline

  22° recline plus 7° backrest tilt

  Reference Angle betwen Seat and Back

  100° to 129°

  Advanced Task Armrests

  Horizontal angle change from elbow pivot point

  • 35° each armrest
  • Lockable in 5° increments

  Headrest Radial Motion (automatic motion during recline)

  30°

  Lumbar Support Increase in Recline

  1"



  Warranty Information

  15 Years, 24/7 Warranty




  Sustainability

  The Freedom Chair is a great example of Humanscale’s environmental purpose.

  • Made predominantly of aluminum, followed by steel and plastic
  • Contains 62% recycled content (43% post-consumer, 19% pre-consumer)
  • 90% recyclable
  • Weighs only 39 pounds
  • Made of 132 parts (comparable chairs are made of up to 250 parts)
  • Modular cushions for easy replacement
  • Designed for easy disassembly
  • Ships in 85% recycled packaging, or blanket-wrapped when feasible
  • Greenguard Certified
